适用仪器

样品实验方案

简要概述

1. 准备细胞
2. 除去生长培养基
3. 添加Rhod-4 NW染料加载溶液（对于96孔板为100 µL /孔，对于384孔板为25 µL /孔）
4. 在室温下孵育1小时
5. 检测Ex / Em = 540/590 nm的荧光强度

溶液配制

储备溶液配制

1. Rhod-4 NW储备溶液：将100 µL DMSO加入小瓶Rhod-4 NW（组分A）中并充分混合，避光。 注意：10 µL Rhod-4 NW储备液足以装满一块板。

2.分析缓冲液（1X）：a）对于＃36330（1个板试剂盒）和＃363331（10个板试剂盒），通过将9 mL HHBS（组分C）添加到10XPluronic®F127 Plus（1 mL，组分B）中来制成1X分析缓冲液，并充分混合。b）对于＃36332（100板试剂盒），通过向10XPluronic®F127 Plus（10 mL，组分B）中加入90 mL HHBS（未包括）制成1X Assay Buffer。 注意：10 mL 1X分析缓冲液足以用于一块板。 分装并在<-20℃下存储未使用的1X分析缓冲液。 避光并避免重复的冻融循环。

工作溶液配制

Rhod-4 NW工作溶液：将20 µL Rhod-4 NW储备溶液加入10 mL 1X分析缓冲液中，并充分混合。 注意：该工作溶液在室温下至少可稳定2小时。

实验步骤

1.将100 µL /孔（96孔板）或25 µL /孔（384孔板）的Rhod-4 NW染料加载溶液添加到细胞板中。

2.在细胞培养箱中将染料加载板孵育30分钟，然后在室温下再孵育30分钟。 注意：如果测定需要37℃，请立即进行实验，而无需进一步室温孵育。 注意：如果细胞在室温下能长时间正常工作，请在室温下孵育细胞板1-2小时。

3.准备并添加HHBS或所需缓冲液的复合板。

4.通过检测Ex / Em = 540/590 nm的荧光强度运行钙通量检测。

图示

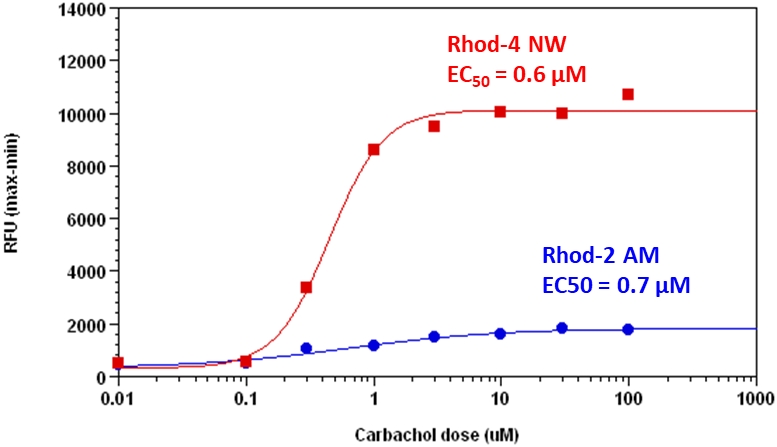

图1.使用Screen Quest Rhod-4 NW分析试剂盒和Rhod-2 AM在HEK-293细胞中测量了卡巴胆碱剂量反应。 将HEK-293细胞以40,000个细胞/ 100 µL /孔在Costar黑色96孔板中过夜接种。 使用Screen Quest™Rhod-4 NW钙测定试剂盒或100 µL Rhod-2 AM溶液（5 µM）在室温下将细胞与100 µL染料上样溶液孵育1小时。 NOVOstar（BMG Labtech）添加了卡巴胆碱（25µL /孔）以达到最终指示的浓度。 使用Rhod-4 NW的卡巴胆碱的EC50约为0.6 µM。

参考文献

Fluorescence absorbance inner-filter decomposition: the role of emission shape on estimates of free Ca(2+) using Rhod-2
Authors: Territo PR, Heil J, Bose S, Evans FJ, Balaban RS.
Journal: Appl Spectrosc (2007): 138

Kinetic characterization of novel NR2B antagonists using fluorescence detection of calcium flux
Authors: Bednar B, Cunningham ME, Kiss L, Cheng G, McCauley JA, Liverton NJ, Koblan KS.
Journal: J Neurosci Methods (2004): 247

Novel fluo-4 analogs for fluorescent calcium measurements
Authors: Martin VV, Beierlein M, Morgan JL, Rothe A, Gee KR.
Journal: Cell Calcium (2004): 509

Protein kinase C and myocardial calcium handling during ischemia and reperfusion: lessons learned using Rhod-2 spectrofluorometry
Authors: Stamm C, del Nido PJ.
Journal: Thorac Cardiovasc Surg (2004): 127

Cytosolic calcium in the ischemic rabbit heart: assessment by pH- and temperature-adjusted rhod-2 spectrofluorometry
Authors: Stamm C, Friehs I, Choi YH, Zurakowski D, McGowan FX, del Nido PJ.
Journal: Cardiovasc Res (2003): 695

Calcium measurements in perfused mouse heart: quantitating fluorescence and absorbance of Rhod-2 by application of photon migration theory
Authors: Du C, MacGowan GA, Farkas DL, Koretsky AP.
Journal: Biophys J (2001): 549

Calibration of the calcium dissociation constant of Rhod(2)in the perfused mouse heart using manganese quenching
Authors: Du C, MacGowan GA, Farkas DL, Koretsky AP.
Journal: Cell Calcium (2001): 217

Changes in mitochondrial Ca2+ detected with Rhod-2 in single frog and mouse skeletal muscle fibres during and after repeated tetanic contractions
Authors: Lannergren J, Westerblad H, Bruton JD.
Journal: J Muscle Res Cell Motil (2001): 265

Rhod-2 based measurements of intracellular calcium in the perfused mouse heart: cellular and subcellular localization and response to positive inotropy
Authors: MacGowan GA, Du C, Glonty V, Suhan JP, Koretsky AP, Farkas DL.
Journal: J Biomed Opt (2001): 23

Mitochondrial free calcium levels (Rhod-2 fluorescence) and ultrastructural alterations in neuronally differentiated PC12 cells during ceramide-dependent cell death
Authors: Muriel MP, Lambeng N, Darios F, Michel PP, Hirsch EC, Agid Y, Ruberg M.
Journal: J Comp Neurol (2000): 297

适用仪器

样品实验方案

简要概述

1. 在生长培养基中准备细胞
2. 添加Calbryte 590 AM染料加载溶液（对于96孔板为100 µL /孔，对于384孔板为25 µL /孔）
3. 在室温或37°C下孵育45-60分钟
4. 在Ex / Em = 540/590 nm处检测荧光

溶液配制

储备溶液配制

1. Calbryte 590 AM储备溶液：向Calbryte 590 AM（组分A）的小瓶中加入20 µL（#36200）或200 µL（#36201和＃36202）DMSO。 注意：20 µL Calbryte 590 AM储备溶液足以装一板。 未用完的Calbryte 590 AM储备溶液可以等分分装，并在<-20℃下保存。 注意：避光，并避免重复的冻融循环。

2.分析缓冲液（1X）：将9 mL的HHBS（组分C，试剂盒#36202中未包括）与1 mL的10XPluronic®F127 Plus（10X）（组分B）充分混合。

工作溶液配制

Calbryte 590 AM工作溶液：将20 µL Calbryte 590 AM储备溶液添加到10 mL的测定缓冲液（1X）中，并充分混合。 注意：该工作溶液在室温下至少可稳定2小时。 注意：10 mL染料加载溶液足以用于一块96孔板。

实验步骤

1.将100 µL /孔（96孔板）或25 µL /孔（384孔板）的Calbryte 590 AM染料加载溶液添加到细胞板中。

2.在细胞培养箱中将染料加载板孵育60分钟，然后在室温下将板再孵育15-30分钟。 注意：如果测定需要37°C，请立即进行实验，而无需进一步室温孵育。 如果细胞在室温下能长时间正常工作，则在室温下孵育细胞板1小时（建议孵育时间不超过2小时）。

3.用HHBS或所需的缓冲液准备复合板。

4.通过检测Ex / Em = 540/590 nm的荧光强度。

图示

图1.图表说明了信噪比（SNR）x 100％。 使用Screen Quest Calbryte 590无丙磺舒和无洗涤钙测定试剂盒测量CHO-K1细胞中的ATP剂量反应。 将CHO-K1细胞以50,000个细胞/ 100 µL /孔在96孔黑色板上接种过夜。 加入100 µL的染料加载溶液，在37°C下孵育45分钟，在室温下孵育15分钟。 FlexStation 3添加了ATP（50 µL /孔）以达到最终指示的浓度。

相关产品

Calreticulin regulates TGF-β1-induced epithelial mesenchymal transition through modulating Smad signaling and calcium signaling
Authors: Wu, Yanjiao and Xu, Xiaoli and Ma, Lunkun and Yi, Qian and Sun, Weichao and Tang, Liling
Journal: The International Journal of Biochemistry & Cell Biology (2017)

Dexmedetomidine reduces hypoxia/reoxygenation injury by regulating mitochondrial fission in rat hippocampal neurons
Authors: Liu, Jia and Du, Qing and Zhu, He and Li, Yu and Liu, Maodong and Yu, Shoushui and Wang, Shilei
Journal: Int J Clin Exp Med (2017): 6861–6868

Monosialoganglioside 1 may alleviate neurotoxicity induced by propofol combined with remifentanil in neural stem cells
Authors: Lu, Jiang and Yao, Xue-qin and Luo, Xin and Wang, Yu and Chung, Sookja Kim and Tang, He-xin and Cheung, Chi Wai and Wang, Xian-yu and Meng, Chen and Li, Qing and others
Journal: Neural Regeneration Research (2017): 945

Obtaining spontaneously beating cardiomyocyte-like cells from adipose-derived stromal vascular fractions cultured on enzyme-crosslinked gelatin hydrogels
Authors: Yang, Gang and Xiao, Zhenghua and Ren, Xiaomei and Long, Haiyan and Ma, Kunlong and Qian, Hong and Guo, Yingqiang
Journal: Scientific Reports (2017): 41781

Di (2-ethylhexyl) phthalate-induced apoptosis in rat INS-1 cells is dependent on activation of endoplasmic reticulum stress and suppression of antioxidant protection
Authors: Sun, Xia and Lin, Yi and Huang, Qiansheng and Shi, Junpeng and Qiu, Ling and Kang, Mei and Chen, Yajie and Fang, Chao and Ye, Ting and Dong, Sijun
Journal: Journal of cellular and molecular medicine (2015): 581–594

The effect of mitochondrial calcium uniporter on mitochondrial fission in hippocampus cells ischemia/reperfusion injury
Authors: Zhao, Lantao and Li, Shuhong and Wang, Shilei and Yu, Ning and Liu, Jia
Journal: Biochemical and biophysical research communications (2015): 537–542

Fungus induces the release of IL-8 in human corneal epithelial cells, via Dectin-1-mediated protein kinase C pathways.
Authors: Peng, Xu-Dong and Zhao, Gui-Qiu and Lin, Jing and Jiang, Nan and Xu, Qiang and Zhu, Cheng-Cheng and Qu, Jain-Qiu and Cong, Lin and Li, Hui
Journal: International journal of ophthalmology (2014): 441–447

Propofol and remifentanil at moderate and high concentrations affect proliferation and differentiation of neural stem/progenitor cells
Authors: Li, Qing and Lu, Jiang and Wang, Xianyu and others
Journal: Neural regeneration research (2014): 2002

Role of mitochondrial calcium uniporter in regulating mitochondrial fission in the cerebral cortexes of living rats
Authors: Liang, Nan and Wang, Peng and Wang, Shilei and Li, Shuhong and Li, Yu and Wang, Jinying and Wang, Min
Journal: Journal of Neural Transmission (2014): 593–600

Increased expression of cell adhesion molecule 1 by mast cells as a cause of enhanced nerve–mast cell interaction in a hapten-induced mouse model of atopic dermatitis
Authors: Hagiyama, M and Inoue, T and Furuno, T and Iino, T and Itami, S and Nakanishi, M and Asada, H and Hosokawa, Y and Ito, A
Journal: British Journal of Dermatology (2013): 771–778
